Flagship product

DigiNetra — eyes on the forest, around the clock.

An integrated wildlife monitoring system that lets managers watch their forest in real time from anywhere — built to run where there is no grid, no cellular signal and no easy way back to fix it.

Request a deployment plan See where it runs

What is DigiNetra?

DigiNetra is an integrated wildlife monitoring tool that lets decision makers and park managers keep watch over their forest land with 24×7 real-time video surveillance, from anywhere in the world.

It is built from modules that work in tandem: long-range IR and thermal cameras covering the landscape, inputs from forest watchers through a mobile application, and data from other sensor technologies — combined into one view.

Every part of it is engineered for remote deployment. Solar power instead of a grid connection, wireless backhaul instead of cellular coverage, and IP65 enclosures because dust and monsoon rain will find any weakness.

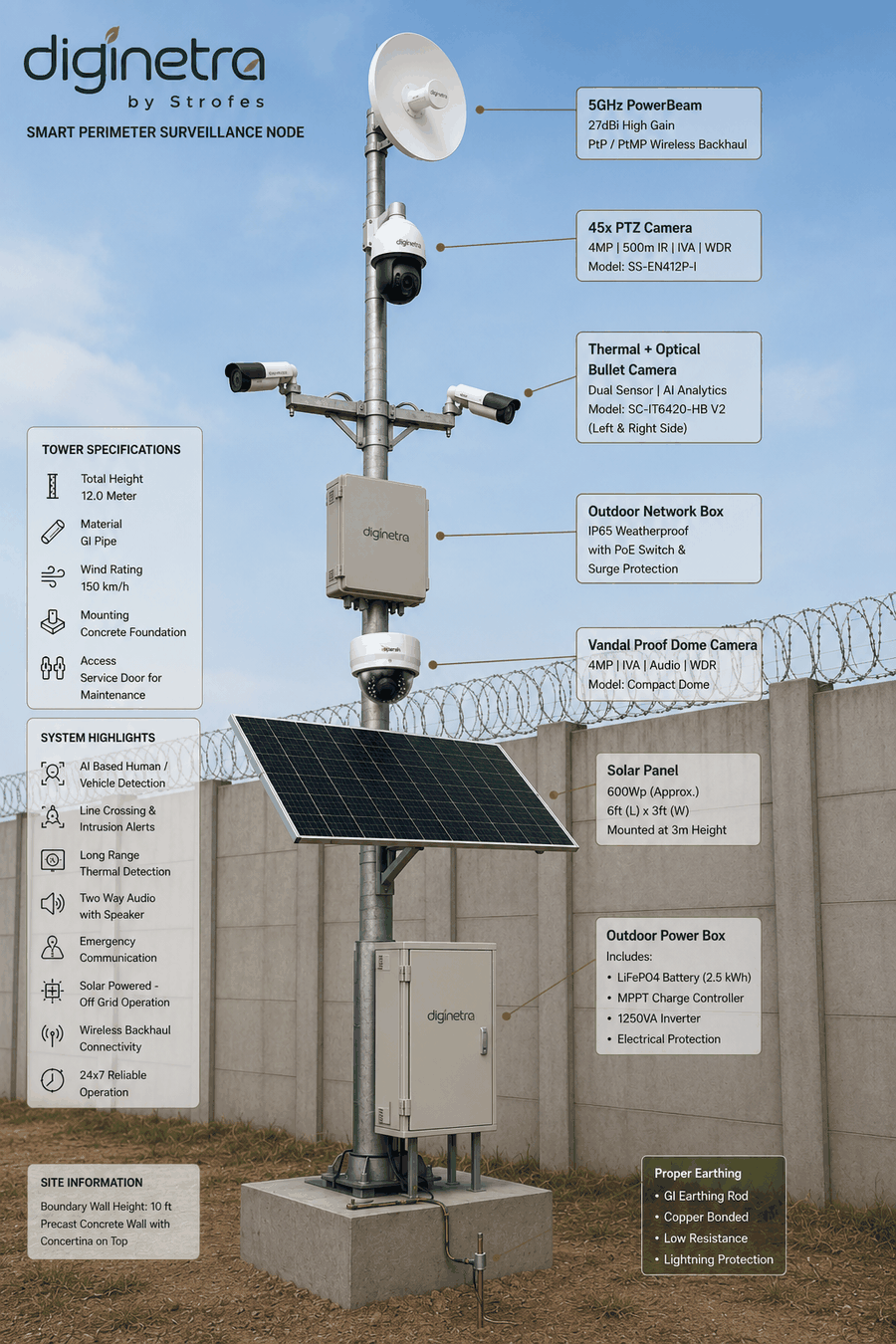

DigiNetra smart perimeter surveillance node: a 12 metre tower carrying PTZ, thermal and dome cameras, a 5 GHz wireless link, solar panel and outdoor power box.

How it works

Six modules, one system.

Each piece is useful on its own. Together they turn a stretch of forest into something you can actually see and respond to.

Long-range PTZ cameras

45× optical zoom, 4 MP, up to 500 m IR illumination with intelligent video analytics and wide dynamic range. Deployments reach 4 km viewing range where the terrain allows.

Thermal + optical bullet cameras

Dual-sensor units pairing thermal detection with optical confirmation, so heat signatures at night can be verified rather than guessed at.

AI detection at the edge

Human and vehicle detection, line-crossing and intrusion alerts, and face detection where the deployment calls for it — turning continuous video into a handful of events worth attention.

Wireless backhaul

5 GHz PowerBeam links at 27 dBi carry footage from the tower to the control room over point-to-point or point-to-multipoint paths, with deployments running up to 9 km.

Off-grid solar power

1.2 kW of solar against a 2.56 kWh LiFePO4 bank with MPPT charge control gives 20+ hours of autonomy, so sites survive monsoon weeks with little sun.

Remote monitoring

Live footage in a control room inside the park, and on mobile — so a range officer does not have to be at a desk to see what is happening.

The software layer

Mirage — the DigiNetra video management system.

Sixteen camera channels on one Windows workstation, with live view, recording, playback and real-time detection of humans, vehicles and animal species. It is what runs in the Kuno control room.

Explore Mirage

Mirage VMS live view: a four-camera grid with AI detection boxes labelling a tiger, elephant, deer and wild boar.

Specifications

Engineered for the worst week, not the best day.

Tower height: 12 m (GI pipe)
Wind rating: 150 km/h
Mounting: Concrete foundation
Enclosure rating: IP65 weatherproof
Solar capacity: 1.2 kW (2 × 610 Wp)
Battery: 2.56 kWh LiFePO₄
Output: 24 V DC / 230 V AC
Autonomy: 20+ hours

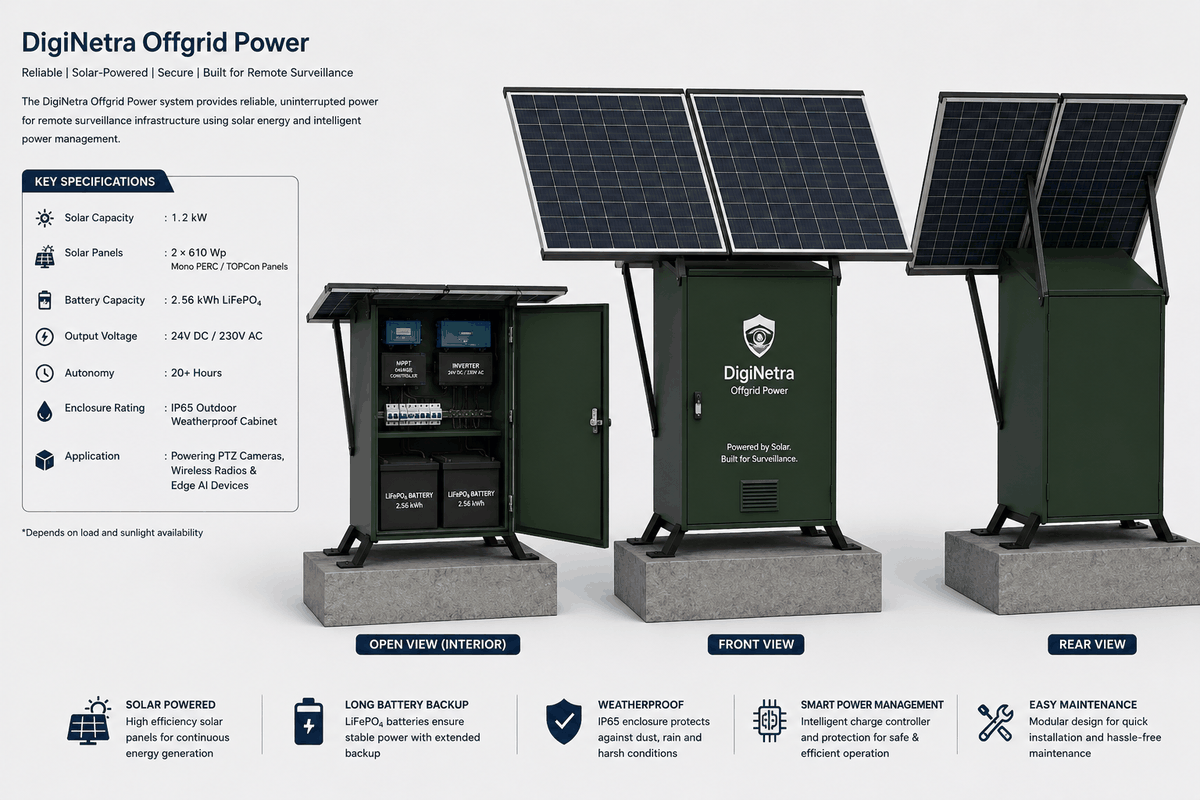

DigiNetra off-grid power system showing interior, front and rear views of the solar-powered IP65 cabinet with LiFePO4 batteries, MPPT controller and inverter.

System highlights

AI-based human and vehicle detection
Line crossing and intrusion alerts
Long-range thermal detection
Two-way audio with speaker
Emergency communication
Solar powered, off-grid operation
Wireless backhaul connectivity
24×7 reliable operation

In the field

Where DigiNetra runs today.

Tiger reserves, national parks and rehabilitation centres across India — including the enclosures where India's reintroduced cheetahs are monitored.

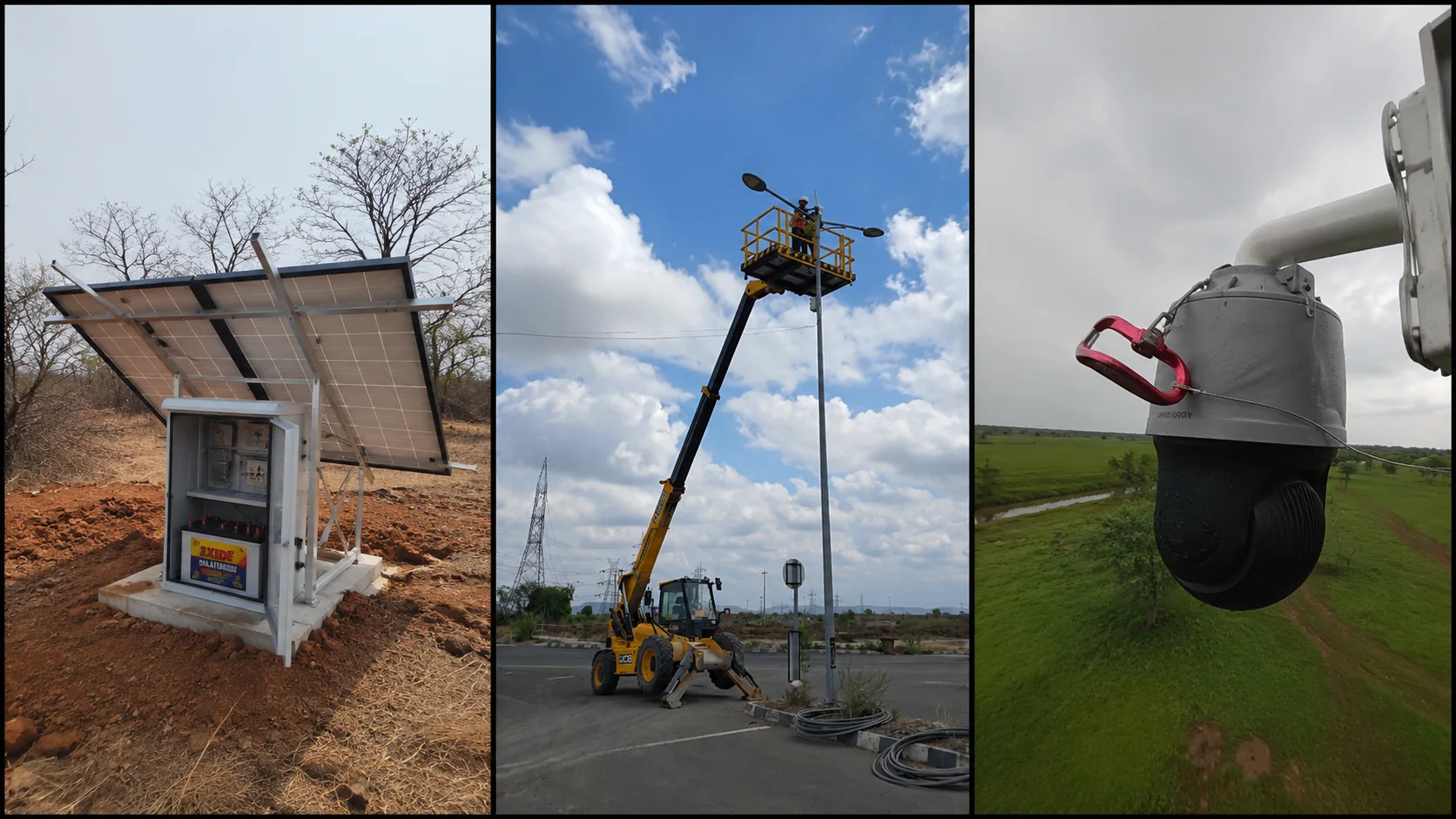

Three DigiNetra field installation scenes: a solar array with its battery cabinet open on a concrete foundation, a crew in a telehandler basket mounting equipment on a pole, and a PTZ camera on its mount overlooking grassland. — From off-grid power to a mounted camera — a DigiNetra site going in.

Toyota Kirloskar Motor — Bidkin Plant

Live since May 2026

System integrator for BM Constrotech

Our first industrial deployment. Four cameras monitor construction progress and site security at Toyota Kirloskar Motor's Bidkin plant in Maharashtra. We delivered the surveillance system as integrator working with BM Constrotech, the main contractor executing the build. The same off-grid, long-range hardware engineered for forests turns out to suit a large construction site with equal ease.

4 camerasConstruction monitoringSite securityIndustrial

Virangana Durgavati Tiger Reserve

Work order awarded — 2026

MP Forest Department

Madhya Pradesh's newest tiger reserve, spanning the Damoh, Sagar and Narsinghpur districts, is being prepared as a cheetah habitat. We have been awarded the work order to install long-range camera surveillance for monitoring the cheetahs.

Long-range cameraCheetah surveillanceAwarded 2026

Kuno National Park

Since December 2021

MP Forest Department

Kuno was the first DigiNetra deployment anywhere. Four 1 km-range IR PTZ cameras went up in December 2021 — nine months before the cheetahs arrived — so the soft-release enclosures could be watched from the moment the animals were introduced in September 2022. Nearly 70 years after the species was declared extinct in India, its return was monitored around the clock from day one. The site now runs seven cameras, and in April 2025 we commissioned a state-of-the-art control room inside the park.

7 cameras1 km IR PTZWireless up to 5 kmDedicated control room

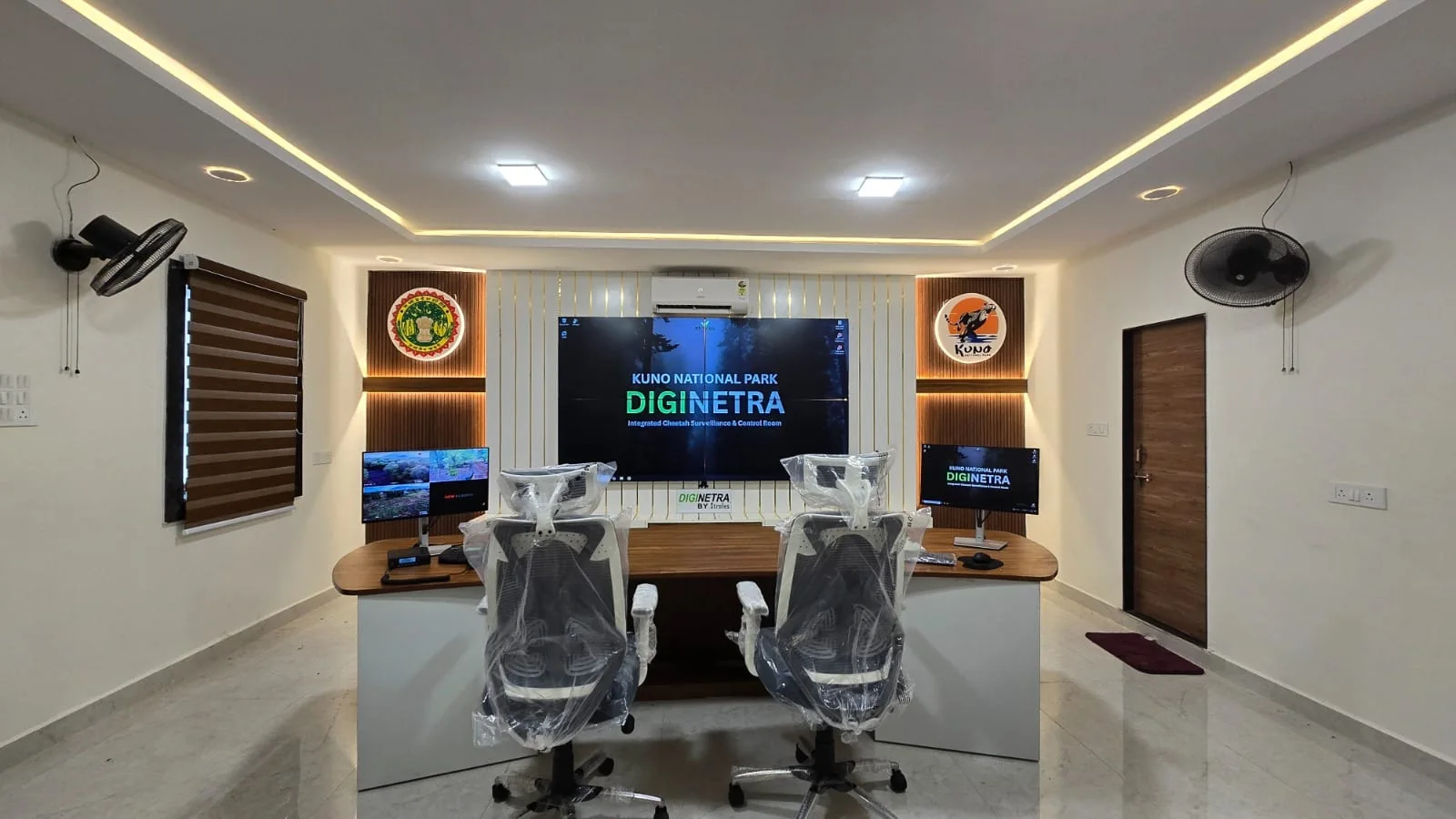

The DigiNetra control room inside Kuno National Park: two operator workstations facing a wall-mounted display reading “Kuno National Park DigiNetra — Integrated Cheetah Surveillance & Control Room”, with live camera feeds on a side monitor. — The Kuno control room, commissioned April 2025

Pench Tiger Reserve

Since December 2023

MP Forest Department

A 4 km long-range IR PTZ camera was installed in December 2023 to monitor illegal fishing at Totladoh Dam. It sits on a 21 metre tower running on industrial-grade off-grid solar, linked wirelessly to a monitoring room 9 km away. Two further cameras were added in 2025, extending coverage across the reserve.

3 cameras4 km long-range IR PTZ21 m tower1 kW off-grid solar

Madhav Tiger Reserve

Since 2023

MP Forest Department

Madhav spreads across roughly 355 sq. km in Shivpuri district, and its boundary runs directly against Shivpuri city — making illegal entry a persistent risk to both wildlife and people. Four AI-enabled PTZ cameras now monitor that boundary. The park has since been declared a tiger reserve.

4 cameras1 km IR PTZAI detectionBoundary monitoring

Gandhi Sagar Wildlife Sanctuary

Since 2024

MP Forest Department

Gandhi Sagar spans 368.62 sq. km along the Madhya Pradesh–Rajasthan boundary across Mandsaur and Neemuch districts. Eight cameras were installed in 2024 to monitor cheetahs in their enclosures — two PTZ units covering the wider area, plus a fixed camera dedicated to each of the six bomas.

8 cameras2 PTZ + 6 fixedOne camera per bomaCheetah monitoring

Centre for Wildlife Rehabilitation and Conservation

Wildlife Trust of India

CWRC is the only facility in India where orphaned and injured wild animals across many species are hand-raised or treated and then returned to the wild. DigiNetra provides the real-time monitoring that lets keepers observe animals without disturbing them.

HikvisionWireless technologyReal-time monitoring

Planning surveillance for a protected area?

Tell us about the site — terrain, power, distance to your control room — and we will come back with what a deployment would actually involve.

Start the conversation
