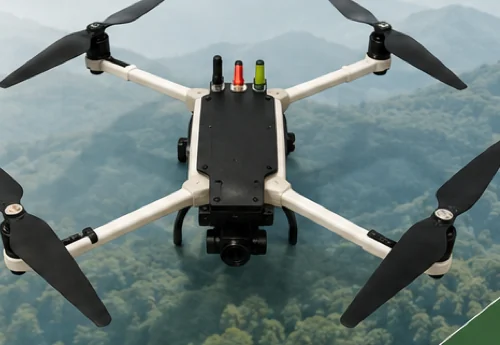

Training & Surveillance Drone
Training and surveillance UAV built for mission readiness
A compact quadcopter for training, surveillance, mapping and data acquisition — 45+ minutes endurance on a 1.1 kg airframe.
Pricing launching soon
What it is
Training and surveillance UAV built for mission readiness.
A compact, high-performance quadcopter designed for training missions, surveillance, mapping and data acquisition across diverse environments.
The master-and-slave training configuration lets an instructor hand control to a trainee mid-flight, which is what makes it a teaching aircraft rather than just a small UAV that happens to be used in a classroom.
Specifications
- Model
- Training and Surveillance Drone
- Configuration
- Quad
- Endurance
- +45 minutes
- Total weight
- 1,100 g
- Operational speed
- 8 m/s
- Max speed
- 20 m/s
- Payload
- Swappable up to 200 gCamera — RGB, thermal, multispectral
- Operating temperature
- −10 °C to 55 °C
- Operation modes
- Training (master + slave), surveillance, mapping
- Battery
- Lithium based
- Wheelbase
- 340 × 340 × 60 mm560 × 560 × 60 mm with propellers
- Ground clearance
- 70 mm
- Structure
- Monocoque CF frameDrizzle, snow and dust proof
- Failsafe
- C2 loss, power loss, return-to-home (RTH)
Figures as published in the Training & Surveillance Drone — specification sheet.
Applications
- Military and defence training
- Surveillance and reconnaissance
- Mapping and data collection
- Payload delivery (light payloads)
- Academic and research
Why this one
Built for the conditions it ships into.
Swappable payload
Up to 200 g, with RGB, thermal or multispectral camera options.
Master + slave training
Instructor and trainee controllers, so control can be handed over in flight.
Monocoque CF frame
Lighter and stronger, and sealed against drizzle, snow and dust.
Triple failsafe
Handles C2 link loss, power loss and return-to-home independently.
Also in this range
Compare the options.
Interested? Talk to us directly.
We do not sell through a cart. Tell us what you need it for and we will come back with availability, lead time and a quote.
